Security Turnstile

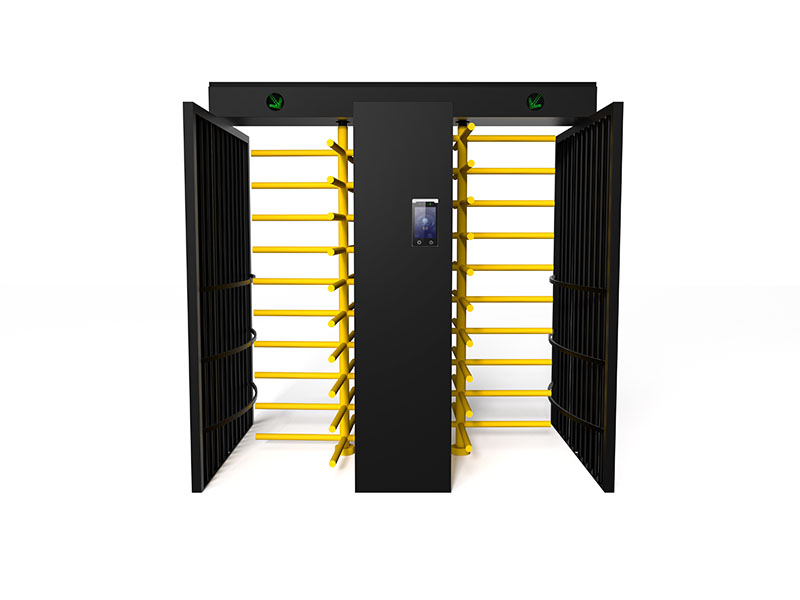

Double Door Full Height Turnstile Gate | Access Control System | Face Recognition

This double-door full-height turnstile is mainly used for entrance and exit control management in venues, communities, industrial parks, etc.

Description

Specifications

Product advantages

Main functions and features of the product

Mechanical anti-trailing design, a single traffic limit of one person;

A variety of working modes to choose from, can be two-way authorized traffic, can also be authorized all the time, the other is prohibited or free traffic;

With automatic reset function, after the valid authorization is opened, if there is no passage within the specified time, the system will automatically cancel the passage permission;

Continuous access function, many people in turn effective authorization, open after receiving the first door signal, the last effective authorization pedestrian through the channel, the turntable door closed;

In case of emergency, the pedestrian channel receives the emergency mode starting signal, and the turnstile is kept open to form a barrier-free evacuation channel to meet the fire protection requirements;

After power failure, the turnstile is open to form an evacuation channel to avoid panic;

Strict rain test, support outdoor use;

Support all kinds of face machine, IC/ID card reader, QR code reader, ID card reader, etc., easy to connect with the access control system.


Place of use

Used in venues, residential areas, industrial parks and other entrance control management.


Body parameter


Product model: KDL-X710

Product size: Length 2200mm * Width 1500mm * height 2200mm

Channel frame: border 1.0mm+ box 1.0mm thick +304 brushed stainless steel

Channel width: 650mm

Product weight: about 280 kg on each side


Technical index


Use life: >3,000,000 times

Opening and closing speed: user set, < 1 second (excluding access control response time)

Speed: 20-40 persons/minute

Communication port: dry contact signal, RS232, RS485

Power input: 220VAC 50/60Hz

Work rate: 80W/ channel

Standby power rate: 30W/ channel

Ambient temperature: -20℃ -60 ℃

Phase humidity: 5%-90% no condensation

Use site: indoor, outdoor
