Safe, fast, data statistics
Pedestrian access gates cooperate with the ticket gate access control system to detect QR codes, tickets, etc. Its working principle is that before entering and leaving personnel, after purchasing or applying for a pass QR code or ticket in the network, offline or APP, the purchase platform will connect with the gate, and when the personnel enters and exits, scan the QR code, Tickets, etc., the system will compare. After the comparison is successful, the system will transmit the information to the gate, and the gate will open. After people pass, the gate will close. At this point, the passage is over.

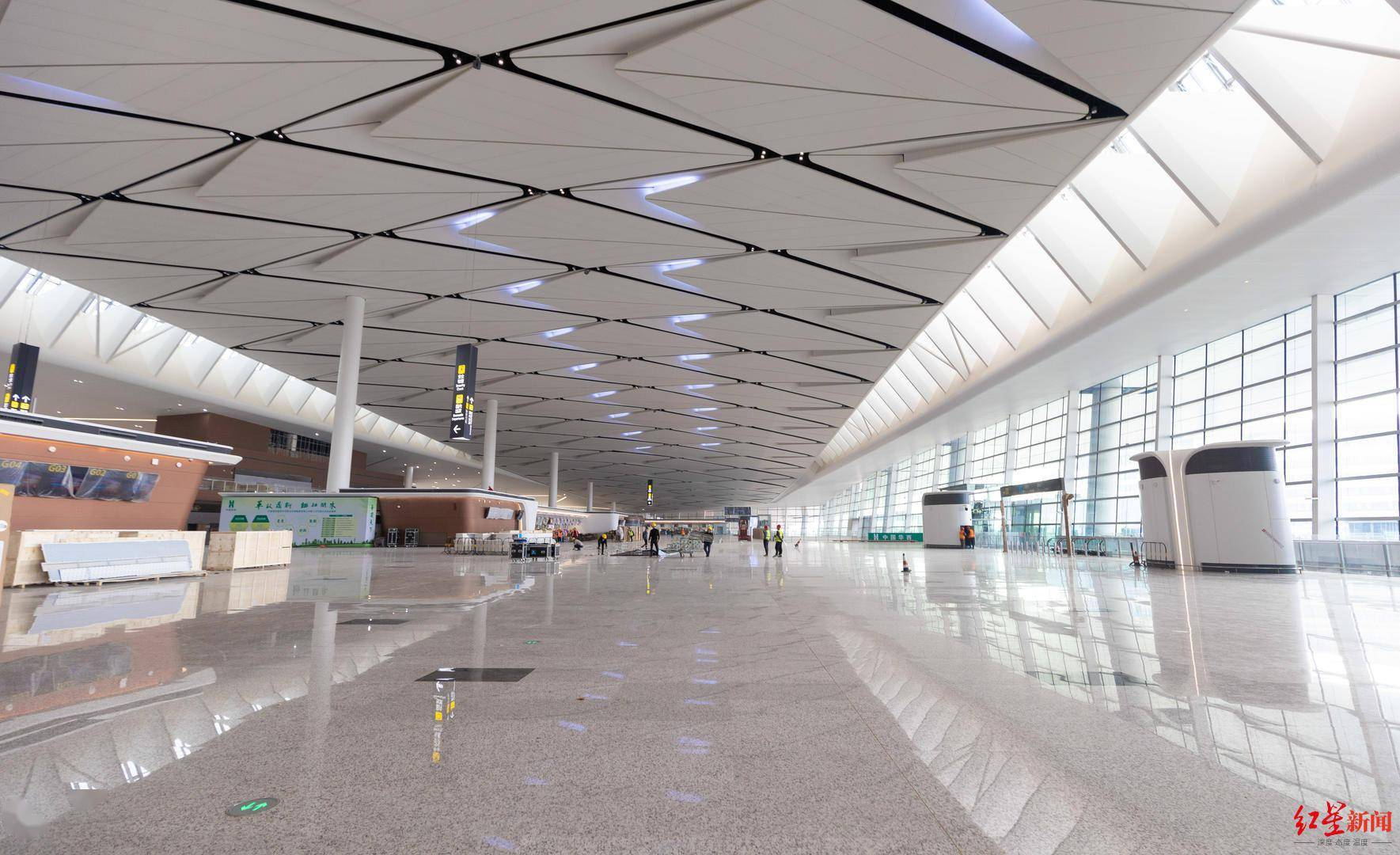

Self-service boarding refers to passengers entering the standby area or boarding gate through self-service boarding gate after pre-security check at the airport or self-service identification check at the gate. Passengers holding legal documents (passport, resident ID card, Hong Kong and Macao pass, etc.) or boarding pass (paper boarding pass, electronic boarding pass can be supported) can enter the boarding area after scanning in the verification area at the entrance of the self-service boarding gate, and the whole process is just as convenient and fast as subway ticket verification.
And has the following significant characteristics:
High efficiency;
High security;
Support traditional certificates and dozens of special identification methods;
Supports traditional paper boarding passes and mobile QR codes.

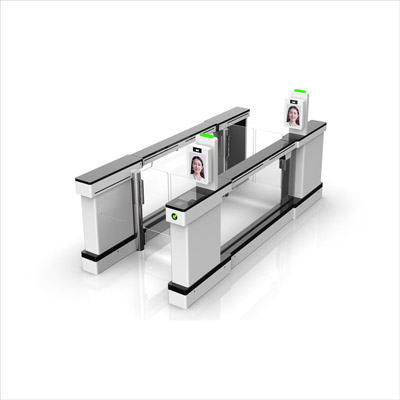

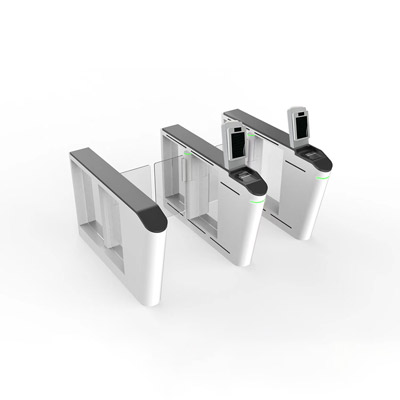

KDL-ZZTD001 airport AB gate is a new generation of intelligent channel with high security, high stability and high efficiency developed for airport boarding business process on the basis of ordinary security clearance gate. It is mainly composed of infrared detection light curtain and flap door unit. The whole gate machine integrates OCR reader, bar code reader, man-machine interface (display) and embedded printer. OCR reader can identify dozens of documents such as passport, ID card, Hong Kong and Macao pass. Bar code readers can support traditional tickets, self-printing tickets and mobile electronic boarding passes and other modes.
The design of the AB door of KDL-ZZTD001 airport ADAPTS to the increasing passenger flow in the field of civil aviation, and is an effective solution to simplify the passenger travel process, improve the efficiency of passenger flow, improve the work efficiency of airport staff, and reduce operating costs.
Product model | KDL-ZZTD001 | Overall dimension | 3000x210x1000 |
Drive motor | Dc brushless servo motor | ||
Channel width | 500mm—900mm（selectable） | ||
Gate type | Pendulum door | ||
Installation mode | Expansion screw fixed; The floor/base can be customized according to user requirements | ||
Working mode | One way, two way | ||
Operating temperature | -20℃—60℃ | ||
Ambient humidity | 5％-90％ No condensation | ||
Supply voltage | 220VAC 50/60Hz | ||
Standby power consumption | 130W/channel | Locking/Maximum torque | 100Nm/9.3Nm |
Operating power consumption | <500W/channel | Door wing material | Acrylic swing arm |
Trouble-free operating period | >10,000,000 times | Product life | >20,000,000 times |
Channel frame | National standard 1.5mm thick + black/black spray /10mm tempered glass partition | ||
Product weight | Approx. 165KG(single side lane) | ||
Infrared quantity | 48 pairs of infrared detection | ||
Passing speed | 20-60 people per minute | ||
Opening speed | User set, maximum <0.3 seconds (excluding access control response time) | ||
Communication interface | RS232/RS485/CAN | Lightning protection, surge resistance | 1500KVA |
security | Meets GB4943 standard | ||
Function extension and external components | Face scanner | Industrial computer | |
IC/ID card reader | Two-dimensional code recognizer | ||
Passport reader | Display screen | ||
Bar code reader | printer | ||
Leakage protection circuit breaker | |||
1、Advanced technology
Advanced CAN bus control mode;
infrared curtain sensor multi-person detection technology;
2、easy to maintain
Independent design of adjacent channels, that is, when the failure of one channel does not affect the operation of the other channel;
The mechanical parts are also modular in design, making it easy to replace any of them.
3、Easy to manage
It has a remote interface, including physical hardware interface and software interface, which is convenient for unified control and database management in the background.
4、easy to install
The mechanical structure is optimized, and the intelligent channel can be transported as a whole after assembly.
5、Stability
stability of mechanical structure;
program stability;
6、Security
Both the physical security and the handling mechanism in case of emergency are up to industry standards. Avoid any passenger injury due to product and software reasons.
It can be entered through multiple ways of manual ticket sales, self-service ticket sales,quick payment ticket sales at gates, and face recognition ticket inspection. Statisticalanalysis of ticket sales information, tourist flow and other information in the database,scientific data, and multi-angle understanding of regional operation conditions will helpto improve work efficiency in a timely and accurate manner.
