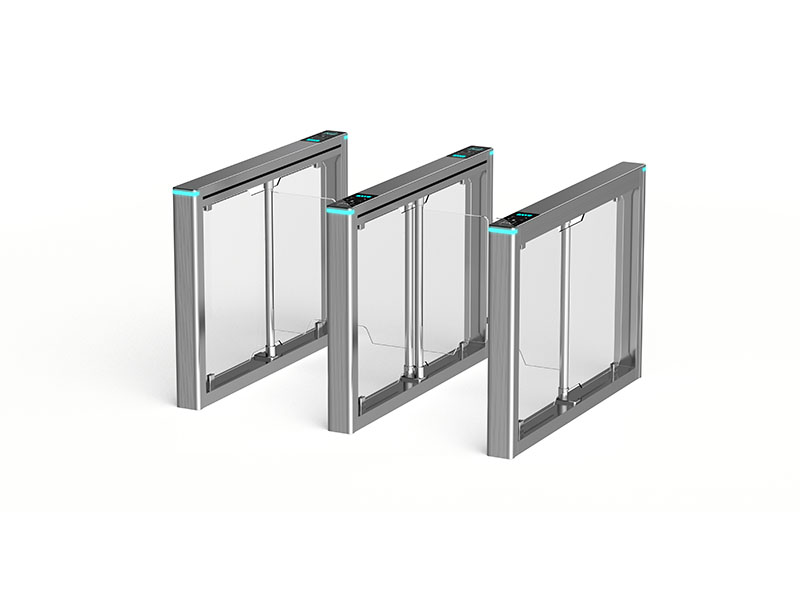

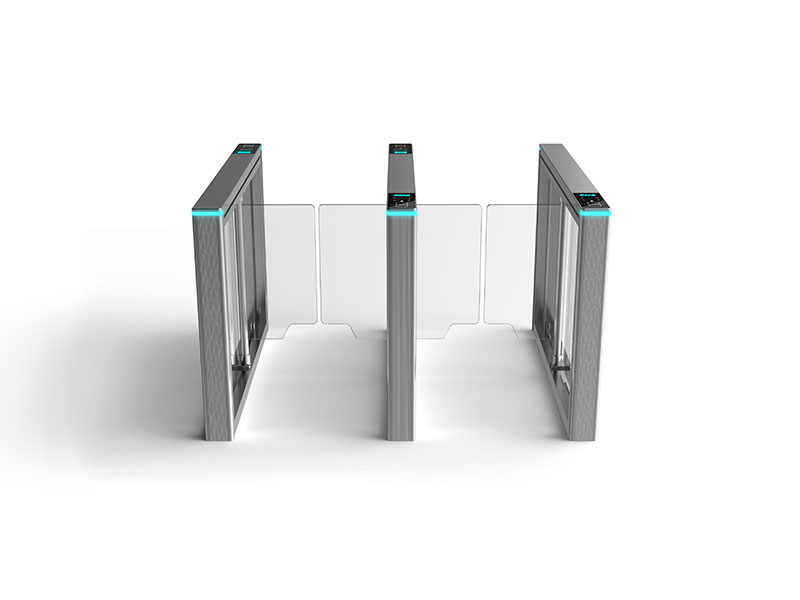

Biometric swing gate turnstile | access control system | Pedestrian swing barrier supplier

Main functions and features of the product

The channel motor adopts DC brushless motor, which runs smoothly and reliably;

Equipped with infrared detection, trailing detection spacing is not more than 200mm, high safety;

A variety of working modes to choose from, can be two-way authorized traffic, can also be authorized all the time, the other is prohibited or free traffic;

With automatic reset function, after the effective authorization door wing is opened, the system will automatically cancel the user's permission to pass within the specified time;

Anti-trailing function, the passage logic can identify the unauthorized or invalid authorized personnel trailing the passage status of the valid authorized personnel;

Continuous passage function, many people in turn effective authorization, the door wing after receiving the first open the door signal opened, the last effective authorized pedestrian through the channel, the door wing closed;

In case of emergency, the swing gate receives the emergency start signal, and the door wing remains normally open to form a barrier-free evacuation channel to meet the fire protection requirements;

After power failure, the door wing is in a free state and can be manually opened to form an evacuation channel to avoid panic;

Anti-clip, anti-damage function, in the process of the door wing movement encountered resistance, the door wing locked;

Anti-collision function, the door wing is not received when the door opening signal is collided, the movement will automatically lock, the maximum withstand 120Nm impact;

With self-detection, self-diagnosis, automatic alarm function. Sound and light alarm function, including illegal entry alarm, anti-clip alarm, anti-trailing alarm, etc.

Strict rain test, support outdoor use;

The function is easy to expand, supporting all kinds of face machine, IC/ID card reader, ID card reader, bar code reader.

Place of use

CBD building, government and enterprise office buildings, financial institutions, all kinds of research and development centers and other entrance control management.
