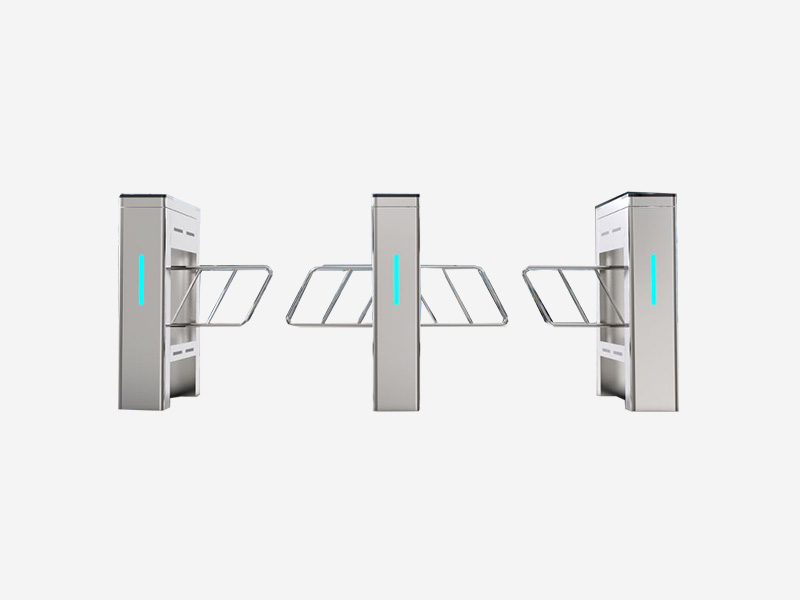

Security Turnstile

Anti-collision swing gate turnstile | esd turnstile gate system | face recognition turnstile

It is mainly used in the entrance of high-end residential areas, factory gates, etc., and can achieve highly intelligent, safe and fast entrance and exit control through bicycles and electric vehicles.

Description

Specifications

Product advantages

Main functions and features of the product


Swing gate motor adopts DC brushless motor, stable operation, reliable and durable;

Unique anti-collision movement design, the whole machine strict rain test, pure outdoor trouble-free use;


Equipped with infrared detection, trailing detection spacing is not more than 120mm, high safety;


A variety of working modes to choose from, can be two-way authorized traffic, can also be authorized all the time, the other is prohibited or free traffic;


During the closing process of the door wing, the gate machine receives the opening signal, and the door wing opens again during the closing process, which effectively improves the traffic efficiency of personnel;


With automatic reset function, after the effective authorization door wing is opened, the system will automatically cancel the user's permission to pass within the specified time;


In case of emergency, the swing gate receives the emergency mode starting signal, and the door wing remains normally open to form a barrier-free evacuation channel to meet the fire protection requirements;


After power failure, the door wing is opened to form an evacuation channel to avoid panic;


The opening and closing time of the door wing is not more than 0.5S (excluding the response time of access control), which can be selected by the user;


Anti-collision function, the door wing is not received when the door opening signal is collided, the door wing will automatically lock, the maximum withstand 120Nm impact;


With self-detection, self-diagnosis, automatic alarm function;


Sound and light alarm function, including illegal entry alarm, anti-clip alarm, anti-trailing alarm, etc.


Function is easy to expand, support all kinds of IC/ID card reader, ID card reader, bar code reader, built-in card recovery.


Place of use


It is mainly used in the entrance of high-end residential areas, factory gates, etc., and can achieve highly intelligent, safe and fast entrance and exit control through bicycles and electric vehicles.


Body parameter


Product model: KDL-B202

Product size: Length 1500mm x width 220mm x height 1000mm

Channel frame: national standard 1.5mm thick +304 stainless steel brushed

Channel width: 800mm - 1150mm

Swing arm material: stainless steel swing arm

Product weight: Approx. 40KG(single side track)


Technical index


Trouble-free operation cycle: >5,000,000 times

Lifetime: >10,000,000 times

Drive motor: DC brushless motor

Opening and closing speed: user set, the fastest <0.5 seconds (excluding the response time of access control)

Line frequency: 20-60 people/minute

Communication port: RS232/RS485/CAN

Power input: 220VAC 50/60Hz

Work rate: <80W/ channel

Idle power rate: 20W/ channel, locking/maximum torque: 100Nm/8Nm

Ambient temperature: -20℃ -60 ℃

Phase humidity: 5%-90% no condensation

Lightning protection, surge resistance: 1500KVA
