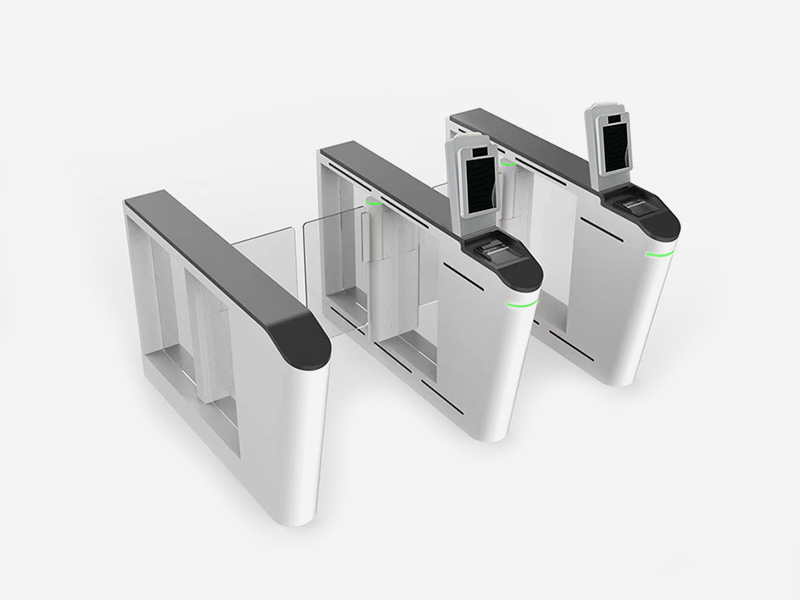

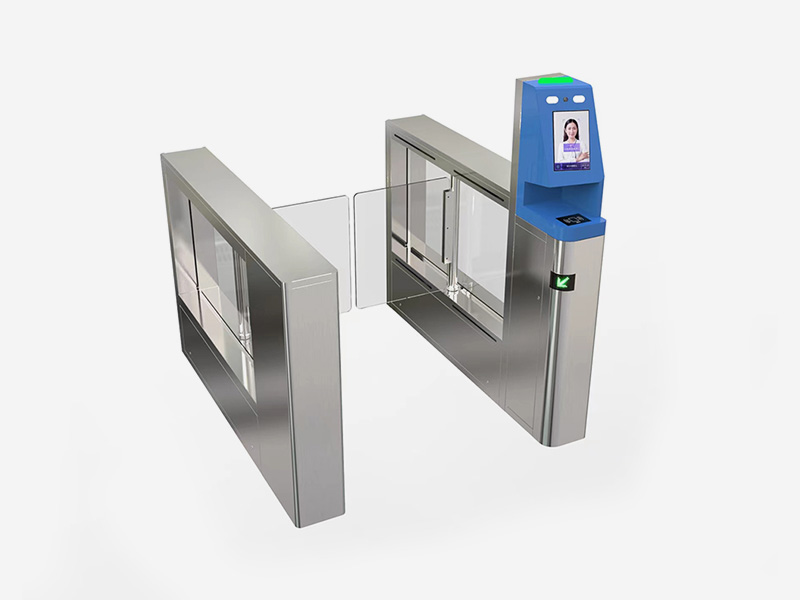

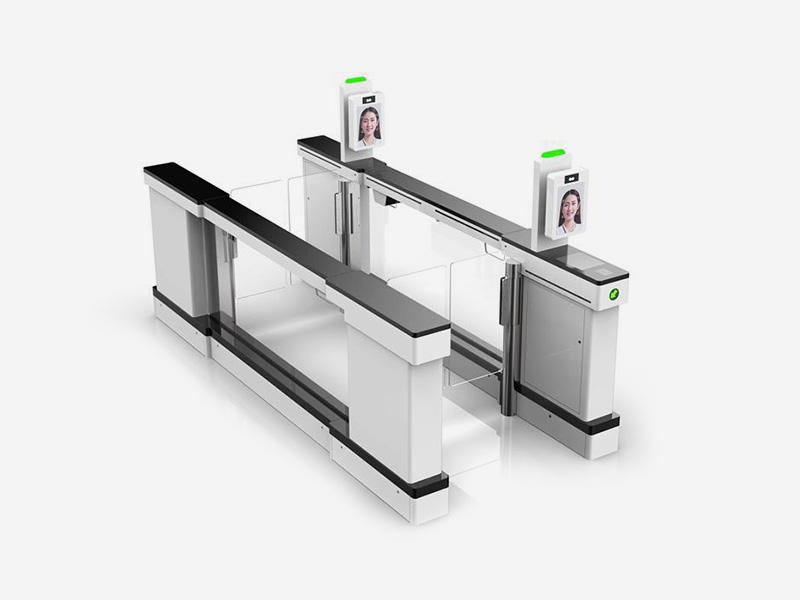

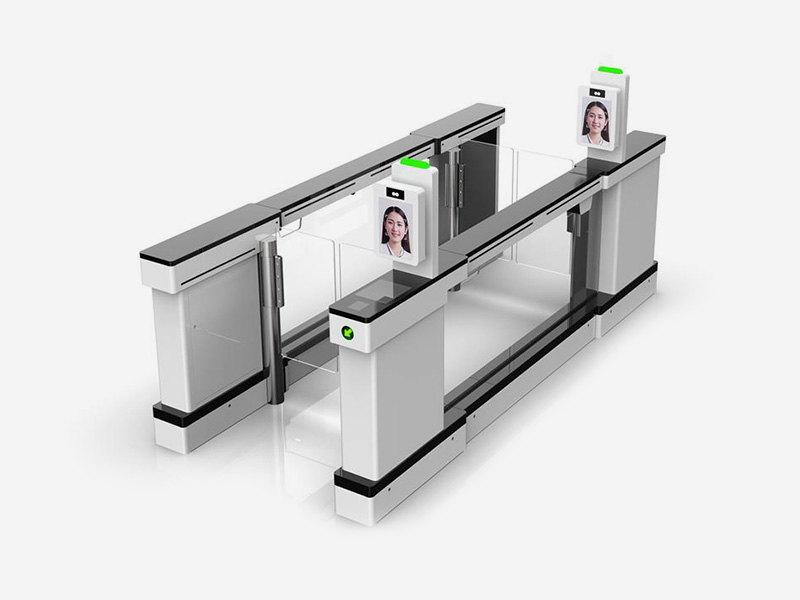

Airport/Customs Ticket Check/Self-Service Passport Verification Turnstile AB Gate

Main functions and features of the product

The motor adopts DC servo motor, stable and reliable operation;

Configured for 48 infrared detection, trailing detection spacing is less than 80mm, high safety;

A variety of working modes to choose from, can be two-way authorized traffic, can also be authorized all the time, the other is prohibited or free traffic;

During the closing process of the door wing, the gate machine receives the opening signal, and the door wing opens again during the closing process, which effectively improves the traffic efficiency of personnel;

With automatic reset function, after the effective authorization door wing is opened, the system will automatically cancel the user's permission to pass within the specified time;

Anti-trailing function, the passage logic can identify the unauthorized or invalid authorized personnel trailing the passage status of the valid authorized personnel;

Continuous passage function, many people in turn effective authorization, the door wing after receiving the first open the door signal opened, the last effective authorized pedestrian through the channel, the door wing closed;

In case of emergency, the swing gate receives the emergency mode starting signal, and the door wing remains normally open to form a barrier-free evacuation channel to meet the fire protection requirements;

After power failure, the door wing is opened to form an evacuation channel to avoid panic;

The opening and closing time of the door wing is not more than 0.3S(excluding the response time of access control), which is available for the user to choose;

Anti-clip, anti-collision function, in the process of the door wing movement encountered resistance, the door wing locked or in a free state;

With self-detection, self-diagnosis, automatic alarm function; Sound and light alarm function, including illegal entry alarm, anti-clip alarm, anti-trailing alarm, etc.

Function is easy to expand, support all kinds of face machine, IC/ID card reader, ID card reader, bar code reader, built-in card recovery.

Place of use

It is mainly used for airport pre-security check, self-service security check, self-service boarding and other places to achieve stable, safe, fast and other entrance and exit control.
